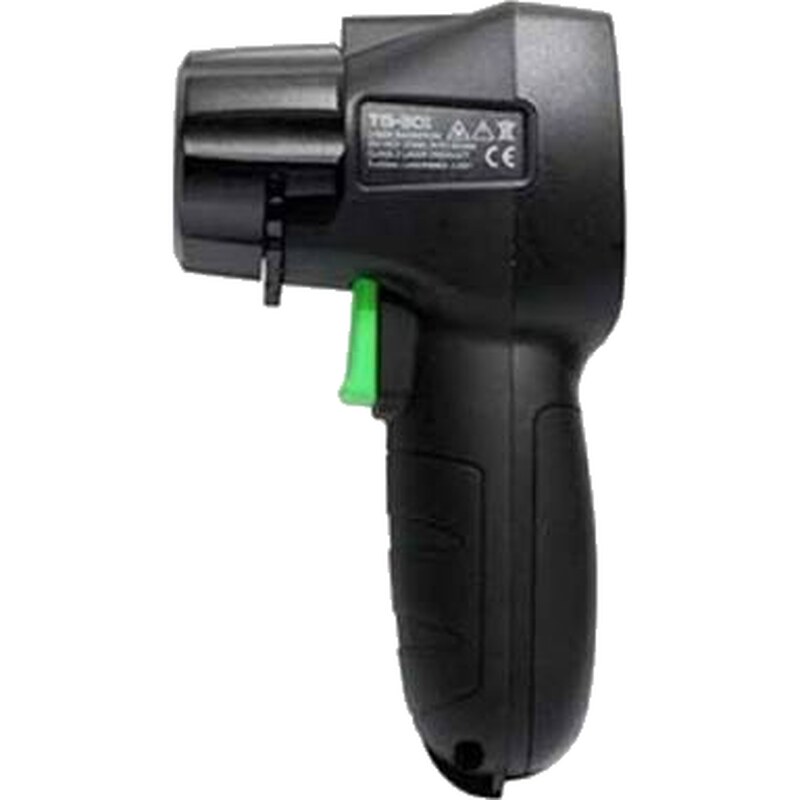

Kusam-Meco TG-301 Handheld Thermal Imaging Camera
Price inclusive of GST. Bulk pricing available on request.
The Kusam-Meco TG-301 is a compact pistol-grip thermal camera with 16,384 pixels (after interpolation) displayed on a 1.77-inch TFT-LCD. With a 30:1 D:S ratio, 5-LED flashlight, SD card storage, and 16-hour battery life on standard AA cells, it is a practical entry-level field tool for electrical hotspot detection and preventive maintenance surveys.
Technical Specifications
| Power | AA × 3 alkaline batteries |
|---|---|
| Weight | Approx. 300 g |
| Display | 160×128 pixel, 1.77-inch TFT-LCD |
| Storage | SD card (2 GB available) |
| Dimensions | 185 × 51 × 100 mm |
| Flashlight | 5 × white LEDs |
| Battery Life | 16 hours (laser and backlight on) |
| Operating Altitude | Up to 2000 m |
| Storage Temperature | -20°C to 60°C |
| Operating Temperature | -10°C to 50°C (10–90% RH) |
| Distance-to-Spot Ratio | 30:1 with laser indication |
| IR Pixels (interpolated) | 16,384 pixels |
Description
The Kusam-Meco TG-301 is a compact pistol-grip thermal camera with 16,384 pixels (after interpolation) displayed on a 1.77-inch TFT-LCD. With a 30:1 D:S ratio, 5-LED flashlight, SD card storage, and 16-hour battery life on standard AA cells, it is a practical entry-level field tool for electrical hotspot detection and preventive maintenance surveys.
Frequently Asked Questions
Need Calibration Support?
We help coordinate NABL-accredited calibration and manufacturer service for every instrument we sell.
